77662
FINALIZE MY QUOTE(DOOR ONLY) MSRP PER DOOR: $2,690.10

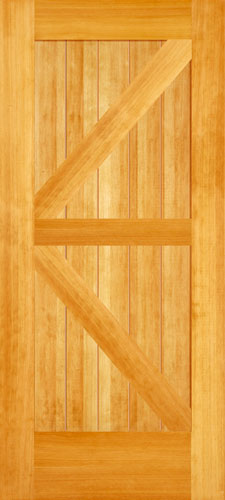

Image shown is of a standard 77662 design in Douglas fir, 3'0" x 6'8"
X
X
Fir
This represents the wood species that you selected in an 82 door design.
Clear
Clear
Ovolo Sticking
Image shown is a Nantucket Collection 77860 in Douglas Fir with 77260 sidelights.
To see this door on your own project, visit Test Drive a Door.
Elevation Drawing
Detail Drawing
Cross Section
Wood Species
Glass
Profile
Standard Image
Similar Installed Image
Door Considerations >
Similar Exterior Doors >
Similar Interior Doors >
Photos >
3D Drawings >
Energy Performance Tested Data >
| Panel | U-Factor | SHGC | VT | Glass Spec* | Glazing Type | Gap Fill |
|---|---|---|---|---|---|---|
| 1-7/16” Innerbond DHRP | 0.42 | 0.12 | 0.12 | Clear | IG | AIR |
| 1-7/16” Innerbond DHRP | 0.39 | 0.07 | 0.1 | Cardinal 272 | IG | Argon |
| 1-7/16” Innerbond DHRP | 0.38 | 0.05 | 0.09 | Cardinal 366 | IG | Argon |
| 3/4" FP | 0.44 | 0.12 | 0.12 | Clear | IG | AIR |
| 3/4" FP | 0.41 | 0.07 | 0.1 | Cardinal 272 | IG | Argon |
| 3/4" FP | 0.41 | 0.05 | 0.09 | Cardinal 366 | IG | Argon |
*Simpson doors can be specified with a variety of glass textures and in the case of insulated units, with different coatings and either air-filled or argon-filled. For test results where there are multiple glass specs shown, the Simpson standard insulated glass unit is noted in bold with glass spec clear. The standard Simpson IG unit with Low-E is noted in bold as Cardinal 272 (or equivalent) with argon gap fill. If your project needs call for a glass type other than the Simpson standard, please provide your specific needs to your Simpson Authorized Dealer.
SHGC=Solar Heat Gain Coefficient
VT=Visible Transmittance
IG=Insulated Glazing
SG=Single Glazing
